Lithium Iron Phosphate LiFePO4 Battery Stacked Energy System

Modular stacking design of a Lithium Iron Phosphate Battery Stacked Home Energy System, the number of modules can be selected according to demand, rapid expansion, easy installation; Movable base for easy movement and fixation; The inverter can be configured on demand.

  • Nominal Battery Energy:  5.12Kwh x 5 flat batteries=25.6Kwh
  • Nominal Capacity: 100Ah
  • Nominal Voltage: 51.2V
  • Battery Type: LiFePO4
  • Delivery time: 15-40 days
  • Warranty: 5 Years

LiFePO4 Battery Stacked Energy System– Stacked Battery Powerwall Backup Solution for Solar Power

Key Points:

Intelligent

Each module is equipped with an independent BMS system.

Safe

The system uses high-quality lithium iron phosphate power cells to bring better product performance and reliability.
Professional pack R&D design and production team.

Intelligent management

LiFePO4 Battery Stacked Energy System is equipped with intelligent BMS for each battery module to effectively manage the normal and stable operation of the module.
Compored with traditional modules, the LiFePO4 Battery-Stacked Energy System can meet the requirements of large storage capacity and greatly increase the cycle life.

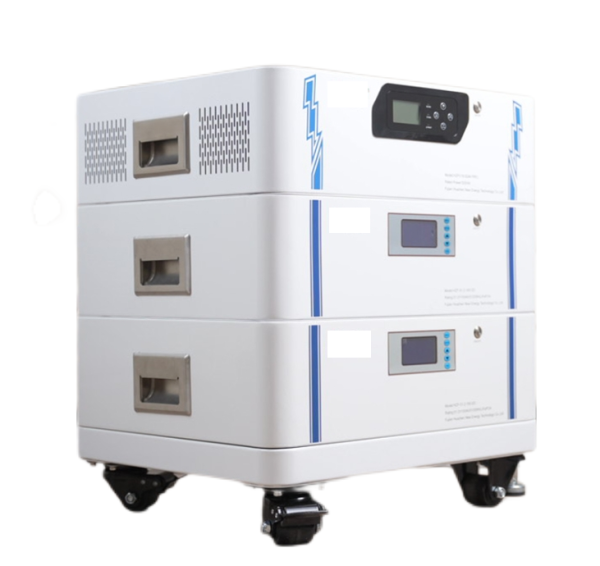

stack home stroage system

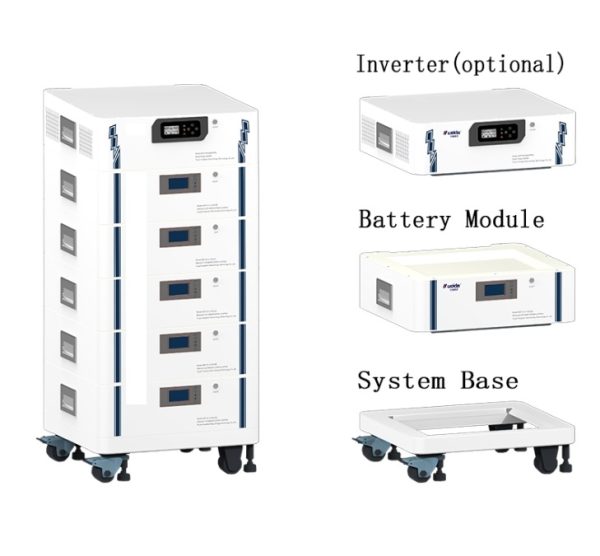

Features

★ Battery module: Modular stocked design, the number of modules can be selected as required, rapid expansion, easy installation

★System base: Mobile base.Equipped with heavy universal brake wheel and directional adjustment wheel. It can move flexibly. The universal brake wheels can be fixed temporarily, directional adjusting wheel can adjust screws and be fixed better.
★ Inverter: This equipment integrates inverter, MPPT solar charger, and battery charger. With a wide PV input range; The solar inverter controller has other advantages such as high power density, small size, simple operation, high efficiency of the whole machine, and small no-load loss

Application

LiFePO4 Battery Stacked Energy System is widely used in residential energy storage systems,stores,offices and other application scenarios.



Technical Specifications

Battery type LiFePO4
Ratedenergy 5.12KWh
Rated capacity 100Ah
Nominal voltage 51.2V
Operating voltage range 42V~58.4V
Max continuous charge current 50A
Max continuous discharge current 100A
Net weight 48.5Kg
Dimension [L*W*H](mm) 680*460*175
Operating temperature range charge:0~45℃;discharge:-20~50℃
[1]Cycle life 5000 Cycles
Communication CAN/RS485
Warranty 5 Years
System base                         Model:HZF-51.2-100-DZ
Net weight 11.8Kg
Dimension[L*W*H](mm) 680*460*150
Inverter(optional)                       Model:HZPV18-5248      PRO
Inverter
output
Rated power 5200VA/5200W
Instantaneous power 10400W
AC input Voltage 230VAC±5%
Selectable voltage range 170~280VAC(UPS)/90~280VAC(APL)/184~253VAC(VED4105)
Frequency range 50Hz/60Hz(Auto sensing)
Solar charge
&
AC charge
Max PV open circuit voltage 450VDC
Charging algorithm 3-step(lead acid battery),4-step(Li battery)
Max PV array power 5000W   6000W
PV array MPPT voltage range 150~430 VDC
Max solar charge current 80A 100A
Max AC charge current 60A 80A
Max charge current 80A 100A
Net weight 27.5Kg
Dimension[L*W*H](mm) 680*460*175
[1]Test   conditions:0.2C   Charging/Discharging,@25C,60%DOD
